Lámina de acrílico extruido

  • HuaMing
  • Shandong, China
  • 10-15 días
  • 1200 toneladas por mes
Las láminas de acrílico extruido de HuaMing cuestan menos que las fundidas y son más estables dimensionalmente, lo que significa que el espesor es más uniforme en todas las láminas. El acrílico extruido es más blando y tiene una temperatura de fusión más baja que en su forma fundida, por lo que es más fácil de cortar con láser, fresar y pulir de manera más rentable. El vidrio rayado es una causa perdida, pero como el acrílico, tanto fundido como extruido, se puede pulir, es una opción más duradera para múltiples aplicaciones. El acrílico extruido es menos susceptible a la suciedad, la pelusa o la contaminación por partículas en el proceso de producción. Además, debido a su punto de fusión más bajo, es más adecuado para la cementación y el termoformado.

HuaMing Extruded Acrylic Sheet

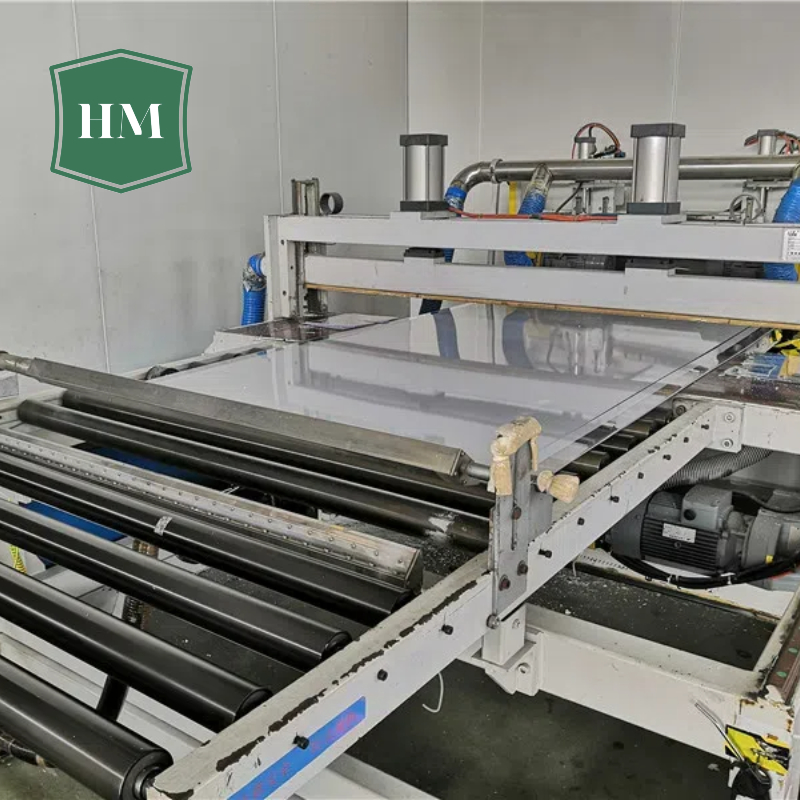

Extrusion is a continuous manufacturing production method where acrylic monomers are first heated then fed through barrels where the chemical process occurs. As a result, extruded acrylic is heterogeneous with properties that may vary depending upon the direction of extrusion.



HuaMing Extruded acrylic costs less than cast and is more dimensionally stable, meaning the thickness is more consistent across sheets. Softer, with a lower melting temperature than in its cast form, extruded acrylic is easier to laser cut, rout, and polishes more cost-effectively. Scratched glass is a lost cause, but because acrylic, both cast and extruded can be polished, it is more durable option for multiple applications. Extruded acrylic is less susceptible to dirt, lint, or particulate contamination in the production process. Additionally, because of its lower melting point, it is better suited to cementing and thermoforming.


 HuaMing Extruded Acrylic Sheet


Description


Density

 1.2g/cm3

Color

transparent(clear), white, opal, black, red, green, blue, yellow, etc. OEM is acceptable

Material

100% New Virgin Raw Mitsubishi Material

Equipment

Imported glass models (from Pilkington Glass in U. K. )

MOQ

30 pieces,can be mixed with colors/sizes/thickness

Delivery

10-15 days

Certificate

SGS


HuaMing Extruded PMMA Sheet


Product Size


Net size

Thickness

1220x2440mm

1-12mm

2000x3000mm

1-12mm

1220x1830mm

1-12mm

1000x2000mm

1-12mm


Physical Properties


Rockwell Hardness

   M-100

Shear Strength

   630Kg/cm2

Tensile Strength

   760Kg/cm2

Yield Strength

   1260Kg/cm2

Rupture Strength

   1050Kg/cm2

Light Transmittance

   94%

Refractive Index

   1.49

Heat Distortion Temperature

   100℃

Thermal Forming Temperature

   140℃-180℃

Coefficient of linear Thermal   Expansion

   6×10-5cm/cm/℃

Dielectric Strength

   20Kv/mm

Water(24HRS)Absorption

   0.30%


 HuaMing Extruded plexiglass Sheet


Our Advantage


1. HuaMing exturded acrylic sheet use 100% virgin raw material, the transparency is high.

HuaMing Extruded Acrylic Sheet


HuaMing Extruded PMMA Sheet

2.Best thickness tolerance and sufficient thickness

HuaMing Extruded plexiglass Sheet

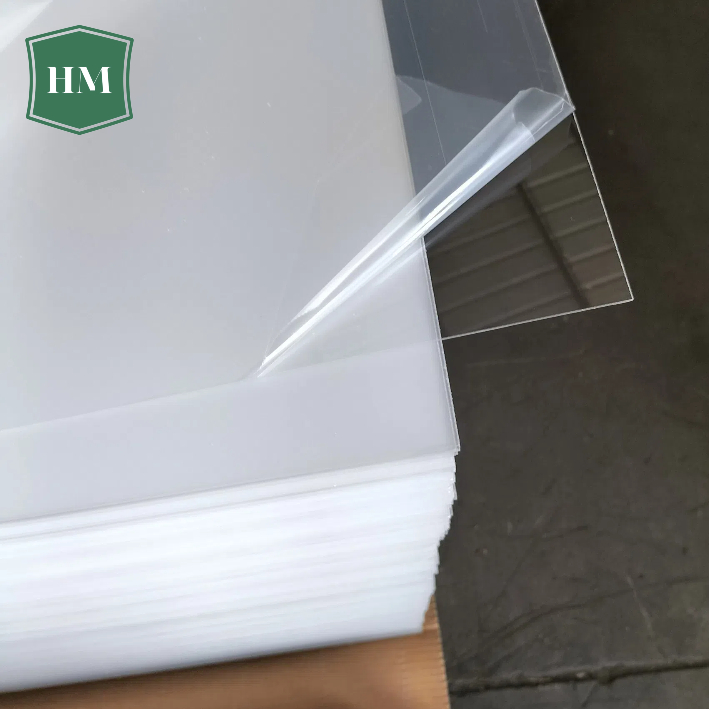

3.Protective film is imported, thicker and easily to remove, no glue left.

HuaMing Extruded Acrylic Sheet


FAQ:

Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer with 18 years experience in this field.

Q: How can i get the sample?

A: Small samples available are free, just freight collect.

Q: How long can I expect to get the sample?

A: We can prepare samples within 3 days. Usually it takes about 5-7 days for the delivery.

Q: What is your MOQ?

A: MOQ is 30pieces/order. Each size, thickness.

Q: What colors can you make?

A: We have 60 regular colors, We can customize special color according to your requirement.

Q: Can we have our Logo or company name to be printed on your package?

A: Sure. Your Logo can be putted on the package by printing or sticker.

Q: What is your lead time for mass production?

A: Normally 10-30 days, depends on the size, quantity and season.

Q: What is your payment term?

A: T/T, L/C

Q: How do you pack it?

A: Each sheet covered by PE film or craft paper, around 1.5 tons packed in a wood pallet.

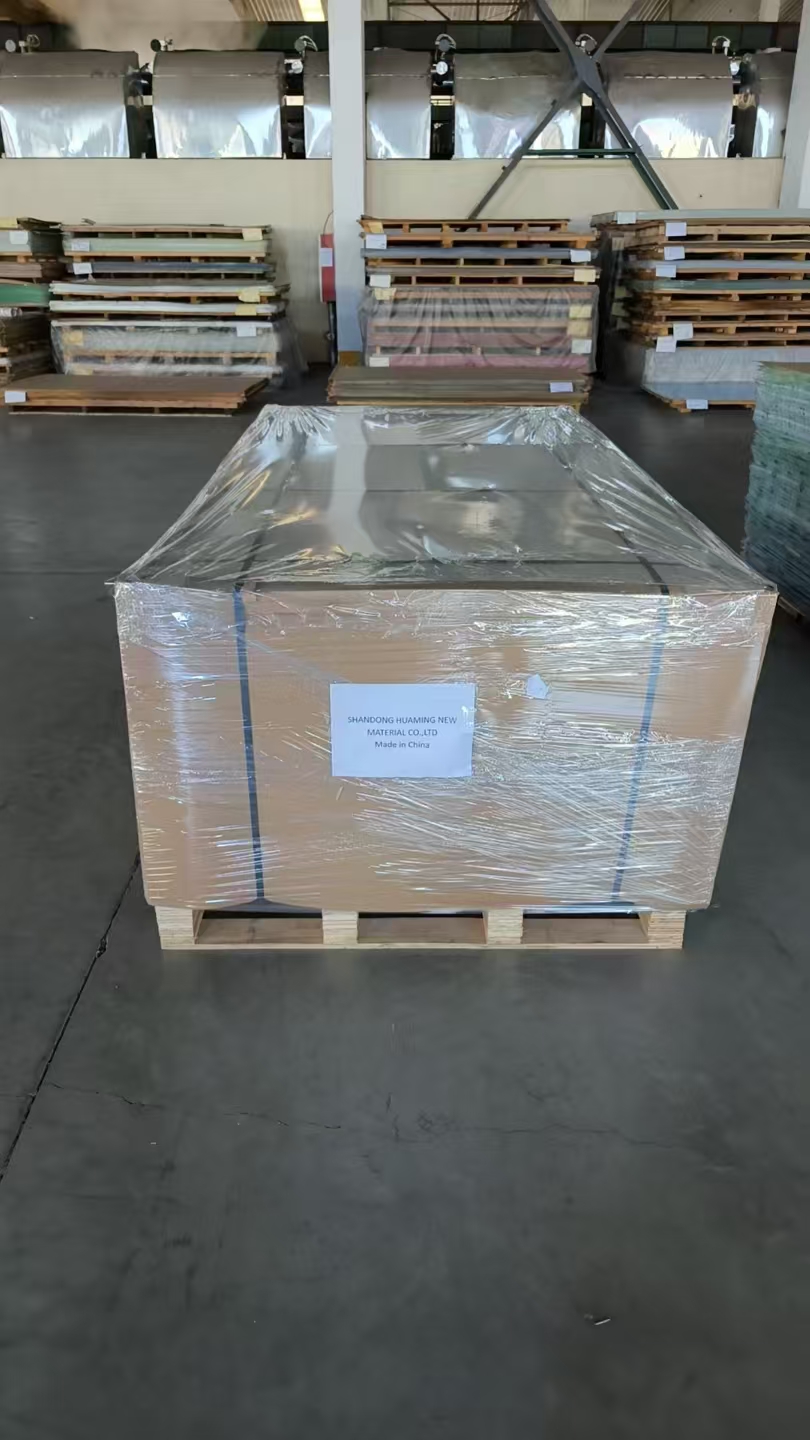

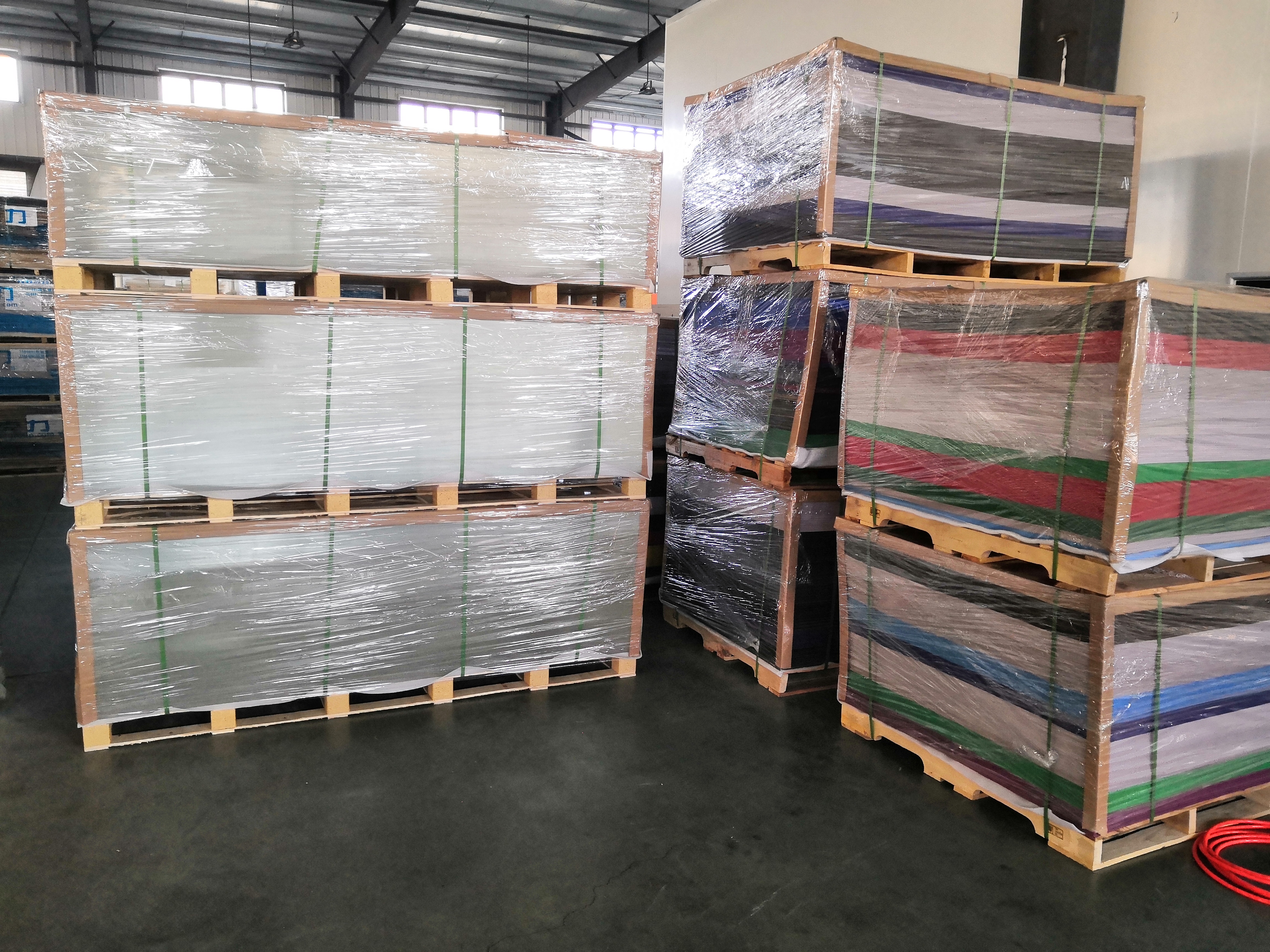

Package


1.HuaMing acrylic covered with craft paper or PE film on double sides

2.with pallet Bulk cargo packing: 2 tons per pallet, use wooden pallets  on bottom, with packaging corrugated paper all around ensure transportation security.

3.Full container load packing: 20-23 tons(about 3000 pcs) of a 20 foot container with 10 -12 pallets.

HuaMing Extruded PMMA Sheet

HuaMing Extruded plexiglass Sheet
